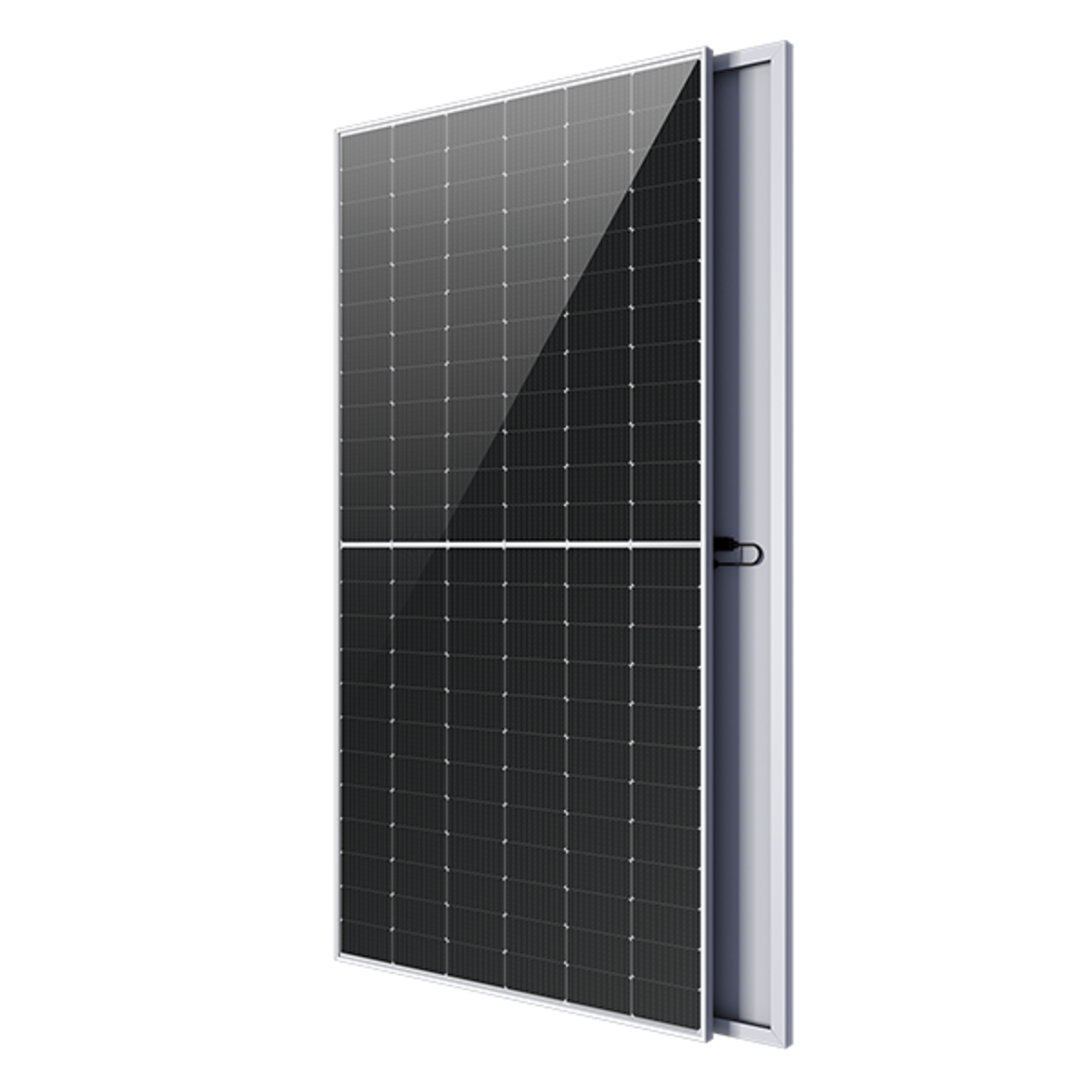

Solar module Chint Astroenergy CHSM72M-HC-540, 540 W


Single-crystal PV module from "Chint" (China) with HalfCells technology and Multi-busbar assembled from high-efficiency SUPER PERC + cells, which allows for higher output power, reduced shading effect on power generation, less risk of hot spots, as well as increased stability for mechanical loading.
Rated power: ……….. 540 W
Dimensions: ……………………. 2256x1133x35
Technologies:…………………………….. Half-cell

Wholesale price is discussed individually

Sale from 2 kW

Out of stock

Categories: , , Product ID: 133137

Astronergy has been a reliable supplier of mono- and polycrystalline photomodules since its foundation in 2006 (China). Specializes in advanced research, development and production of high-efficiency silicon power generation devices. The company's production capacity exceeds 2500 MW/year, which allowed the company to enter the prestigious Tier1 rating list. This manufacturer entered the European market in 2014, when they opened their factory in Germany.


Manufacturer Chint/Astroenergy
Manufacturer country China
Rated power of PV module (W) 540
Rated operating current in TMM, A 12.93
Open circuit voltage, V 49.7
Connector type MC4 Compatible
Number of cells, pcs 144
Cell Technology monocrystalline
Rated operating voltage in TMM, V 41.76
Short circuit current (A) 13.72
Conversion coefficient (efficiency, %) 21.1
Length of cable 300
FEM overall dimensions, mm 2256x1133x35
Maximum DC system voltage, V 1500
Weight, kg) 26.5
Temperature coefficient of open circuit voltage, % -0.27
Warranty period (months) 144

View data sheet for Chint Astroenergy CHSM72M-HC-54 panel

Rated power pmax

Open circuit voltage voc

Short circuit current isc

Photocell type

Number of photocells in the module
Maximum system voltage

Module dimensions

Module weight

Delivery terms are negotiated individually
